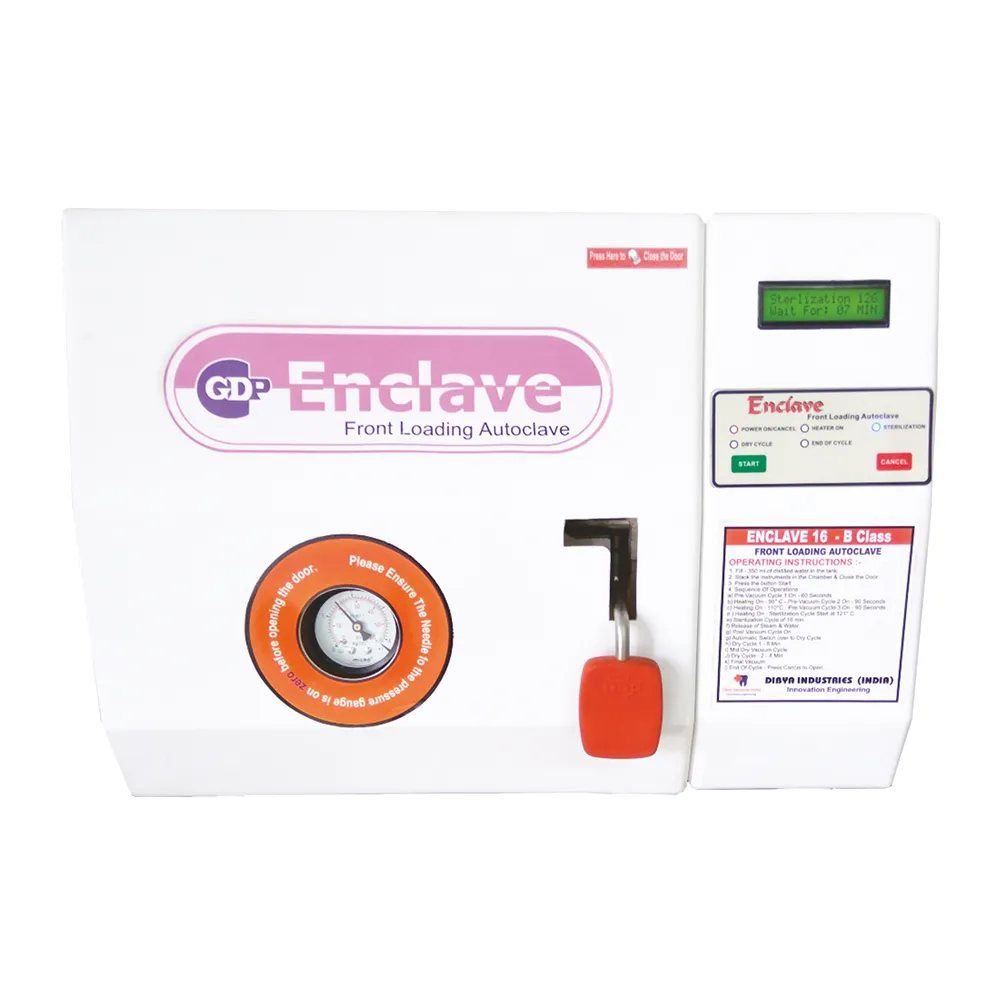

GDP Enclave Front Loading Autoclave B-CLASS

GDP Enclave B – Class Autoclave

The GDP Enclave B-Class Autoclave is a versatile and efficient sterilization solution designed for dental clinics and laboratories. Available in capacities ranging from 12 to 23 liters, this fully automatic front-loading autoclave caters to various application needs and client requirements. Equipped with vacuum sterilization and a vacuum pump inside the chamber, it ensures thorough air removal for effective sterilization cycles. The autoclave features a dry cycle to eliminate residual moisture from sterilized items, guaranteeing they are ready for immediate use. With dynamic heating technology for precise parameter control, pre- and post-sterilization vacuum cycles, a digital display for monitoring operations, and a durable construction of heat-resistant plastic and stainless steel, the GDP Enclave B-Class Autoclave meets international standards for sterilization while offering user-friendly features and reliable performance in dental setting.

Features:

• Fully Automatic Operation: Front-loading autoclave with vacuum, sterilization, and dry cycle for convenient and reliable use.
• Dynamic Heating Technology: New technology for precise control of parameters, increasing heater life.
• Vacuum Pump: Fitted inside the autoclave for pre and post-sterilization vacuum cycles as per international standards.
• Multiple Vacuum Cycles: Includes a total of 6 vacuum cycles during sterilization for thorough cleaning.
• Digital Display: Shows all operations in sequence, including time and temperature, for easy monitoring.
• Front Control Panel: Features touch-type key switches and LEDs to indicate operations inside the autoclave.
• Durable Construction: Front door and panel made of heat-resistant plastic, top cover of rust-resistant stainless steel.
• In-House Spare Parts Availability: Ensures easy access to spare parts for maintenance.
• International Standards Compliance: Meets all international tests and standards for effective sterilization.
• Silicon Rubber Sealing Ring: Provides a secure seal for sterilization processes.
• One-Touch Operation: Simplifies use with automatic operations upon pressing the start button.
• Quick Cycle Time: Total cycle takes 1 hour, with 3 pre-sterilization vacuum cycles for efficient performance.

Direction to Use:

• Prepare Items: Ensure all items to be sterilized are clean and placed in the autoclave-friendly containers.
• Load the Autoclave: Place the items on the stainless steel trays inside the autoclave chamber, ensuring they are not overcrowded to allow proper steam circulation.
• Close the Door: Securely close the autoclave door to ensure a tight seal.
• Select Cycle: Choose the appropriate sterilization cycle based on the type of items being sterilized (e.g., wrapped instruments, unwrapped instruments).
• Start Cycle: Initiate the sterilization cycle by pressing the start button, allowing the autoclave to complete the sterilization and dry cycle automatically.
• Wait for Completion: Wait for the autoclave to complete the cycle. Once finished, the items will be sterilized and ready for use.
• Unload Items: Carefully remove the sterilized items from the autoclave using proper protective equipment to avoid burns.
• Store or Use Items: Store or use the sterilized items as needed, ensuring proper handling to maintain their sterility.

Key Specification:

GDP Enclave B – Class Autoclave – 12 Ltrs

• Width: 470mm
• Height: 400mm
• Depth: 520mm
• Capacity: 12Ltr
• Power Consumption: 1KW
• Gross Weight: 28kg
• Inter Chamber Size: 225x310mm
• Tray: 2 Number of trays
• Dimension of Tray: 200x300mm
• Tray Material: Stainless Steel

GDP Enclave B – Class Autoclave – 18 Ltrs

• Width: 470mm
• Height: 400mm
• Depth: 585mm
• Capacity: 18Ltr
• Power Consumption: 1.4KW
• Gross Weight: 30kg
• Inter Chamber Size: 225x315mm
• Tray: 3 Number of trays
• Dimension of Tray: 215x280mm
• Tray Material: Stainless Steel

GDP Enclave B – Class Autoclave – 23 Ltrs

• Width: 470mm
• Height: 400mm
• Depth: 585mm
• Capacity: 23Ltr
• Power Consumption: 2KW
• Gross Weight: 35kg
• Inter Chamber Size: 225x432mm
• Tray: 3 Number of trays
• Dimension of Tray: 215x405mm
• Tray Material: Stainless Steel.

Packaging:

GDP Enclave B – Class Autoclave – 12 Ltrs

• 1 x Autoclave
• 1 x Tray Holder
• 1 x Drain Pipe
• 1 x Measuring Flask
• 2 x Stainless Steel Tray

GDP Enclave B – Class Autoclave – 16 Ltrs

• 1 x Autoclave
• 1 x Tray Holder
• 1 x Drain Pipe
• 1 x Measuring Flask
• 3 x Stainless Steel Tray

GDP Enclave B – Class Autoclave – 22 Ltrs

• 1 x Autoclave
• 1 x Tray Holder
• 1 x Drain Pipe
• 1 x Measuring Flask
• 3 x Stainless Steel Tray
