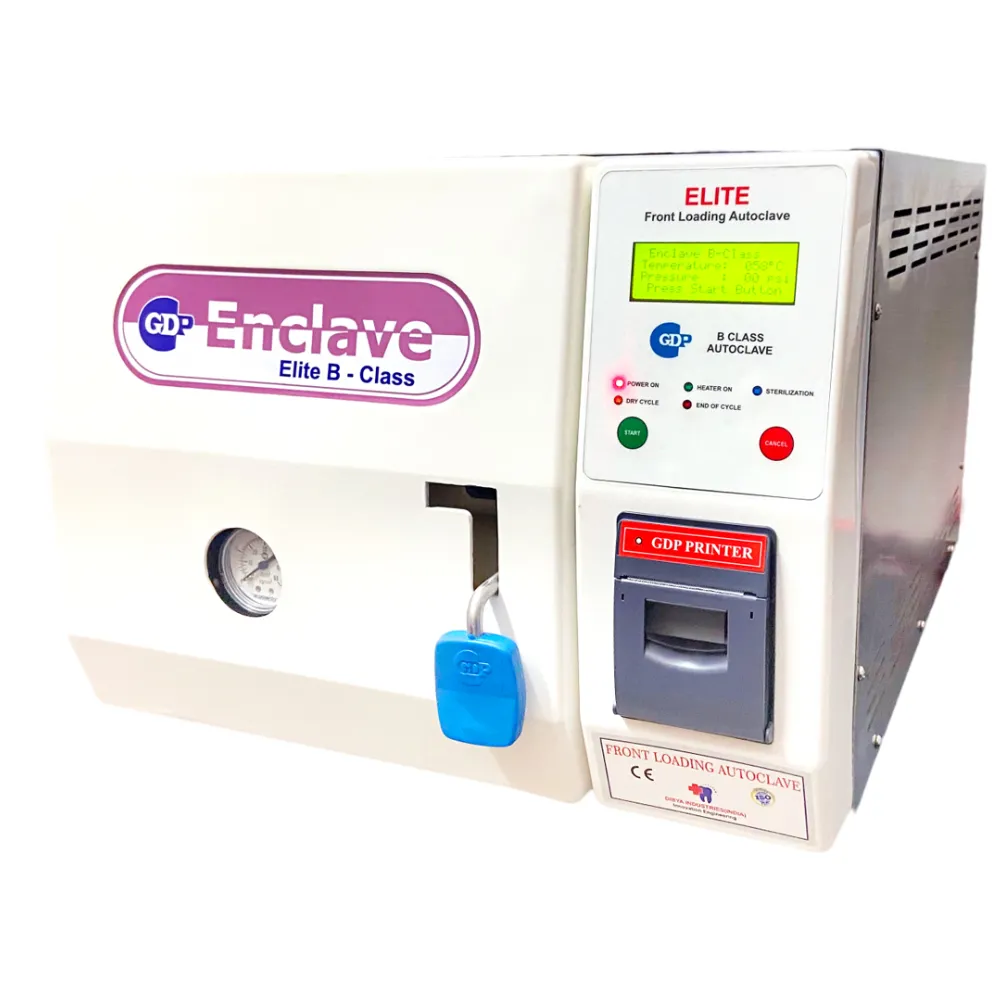

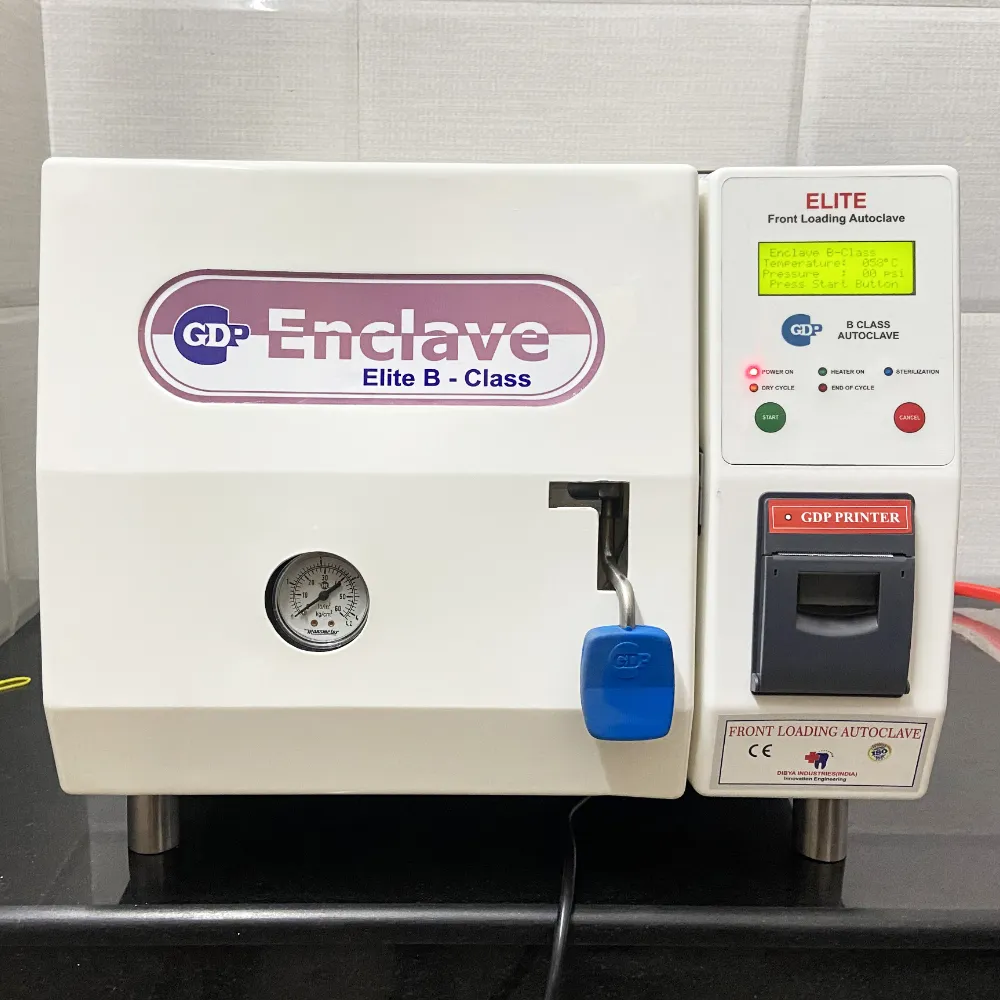

GDP Elite Front Loading Autoclave B-CLASS 22 ltr.

GDP Elite Front Loading Autoclave with Inbuilt Printer – 22 ltrs

The GDP Enclave Elite B-Class Autoclave is a cutting-edge sterilization solution equipped with an inbuilt printer to provide detailed cycle information after each operation. This autoclave features dynamic heating technology for precise parameter control, ensuring increased heater life and up to 30%-50% power savings compared to traditional models. With a vacuum pump for pre and post-sterilization vacuum cycles, 6 vacuum cycles, and a quick 1-hour total cycle time, this autoclave offers efficient sterilization. The digital display, touch-type key switches, and silicon rubber sealing ring enhance user experience, while the durable construction of heat-resistant plastic and stainless steel ensures longevity. The autoclave’s single-touch operation, in-house spare parts availability, and compliance with international standards make it a reliable and user-friendly choice for dental clinics and laboratories.

The Printer Receipt contains:-

• Date/Month/Year
• Time at the start of the Cycle starts.
• Information about each cycle – Time taken & Temperature.
• Sequence of operation.
• Total time taken.
• Custom Name of Clinic on Receipt also Available
• The complete receipt can be placed as a record of sterilization, and a method of publicizing sterilization practices.

Features of Enclave Elite Series:

• Easy to use fully automatic Class B autoclave with a single universal sterilization cycle at 121c /18 PSI
• Comes with a Bigger Screen ( 4 Line Display)
• ARM Based advanced micro controller system
• Now comes with a digital temperature and pressure sensor.
• Self Vacuum Test during every cycle.
• Set of 13-Error Codes to diagnose any error during cycle .
• 2-Input Dynamic Heater Control.
• Inbuilt Printer prints information after end of each cycle.

The Printer Receipt contains :-

• Date/Month/Year
• Time at start of Cycle start.
• Information about each cycle – Time taken & Temperature.
• Sequence of operation.
• Total time taken.
• The complete receipt can be placed as a record of sterilization, and a method of publicizing sterilization practices.
• Inbuilt Thermal Printer prints detailed cycle data for record keeping ( NABH+)
• Vacuum pump fitted inside the autoclave to allow Pre & Post sterilization vacuum cycle inside the chamber as per the International standards.
• Total of 6 Vacuum Cycles
• 3 Pre-Sterilization Vacuum Cycle.
• With Digital Display of all the operations in sequence and timer & Temperature.
• The Front control panel has a touch type key switches and also have LEDs to indicate the operation going inside the autoclave.
• Front Door and panel is made of heat resistance NYLON and the top cover is made of stainless Steel.
• High Quality TPFT pipes with heat resistance of over 800 Degrees.
• Sealing Ring made of Silicon Rubber with high pressure safety seal.
• Single Touch operation, specially designed for ease of use.
• Inhouse spare parts.

• Single Universal Sterilization Cycle: Operates at 121°C / 18 PSI for effective sterilization.
• Bigger Screen Display: Features a 4-line display for clear visibility and monitoring.
• ARM-Based Microcontroller System: Ensures precise control over sterilization processes.
• Digital Temperature and Pressure Sensor: Provides accurate monitoring of sterilization conditions.
• Self Vacuum Test: Conducted during every cycle to ensure proper vacuum levels.
• Error Code System: Includes a set of 13 error codes for diagnosing any component failure.
• Dynamic Heater Control: Offers 2-input dynamic heater control for efficient performance.
• Inbuilt Printer: Prints detailed cycle information after each operation for record-keeping.
• Multiple Vacuum Cycles: Includes a total of 6 vacuum cycles, with 3 pre-sterilization vacuum cycles.
• User-Friendly Design: Digital display of operations, touch-type key switches, and LEDs for easy operation.
• Durable Construction: Front door and panel made of heat-resistant nylon, top cover of stainless steel.
• High-Quality Components: TPFT pipes with heat resistance over 800 degrees for durability.
• Safety Features: Silicon rubber sealing ring with high-pressure safety seal for secure sterilization.
• Single-Touch Operation: Designed for ease of use with automatic cycle initiation.

Key Specification:

• Width: 470mm
• Height: 400mm
• Depth: 585mm
• Capacity: 18Ltr
• Power Consumption: 1.4KW
• Gross Weight: 30kg
• Inter Chamber Size: 255x315mm
• Tray: 3 Number of trays
• Dimension of Tray: 215x280mm
• Tray Material: Stainless Steel.

Direction to Use:

• Prepare for Sterilization: Ensure the autoclave is properly connected to a power source and water supply.Place the items to be sterilized in autoclave-friendly containers.

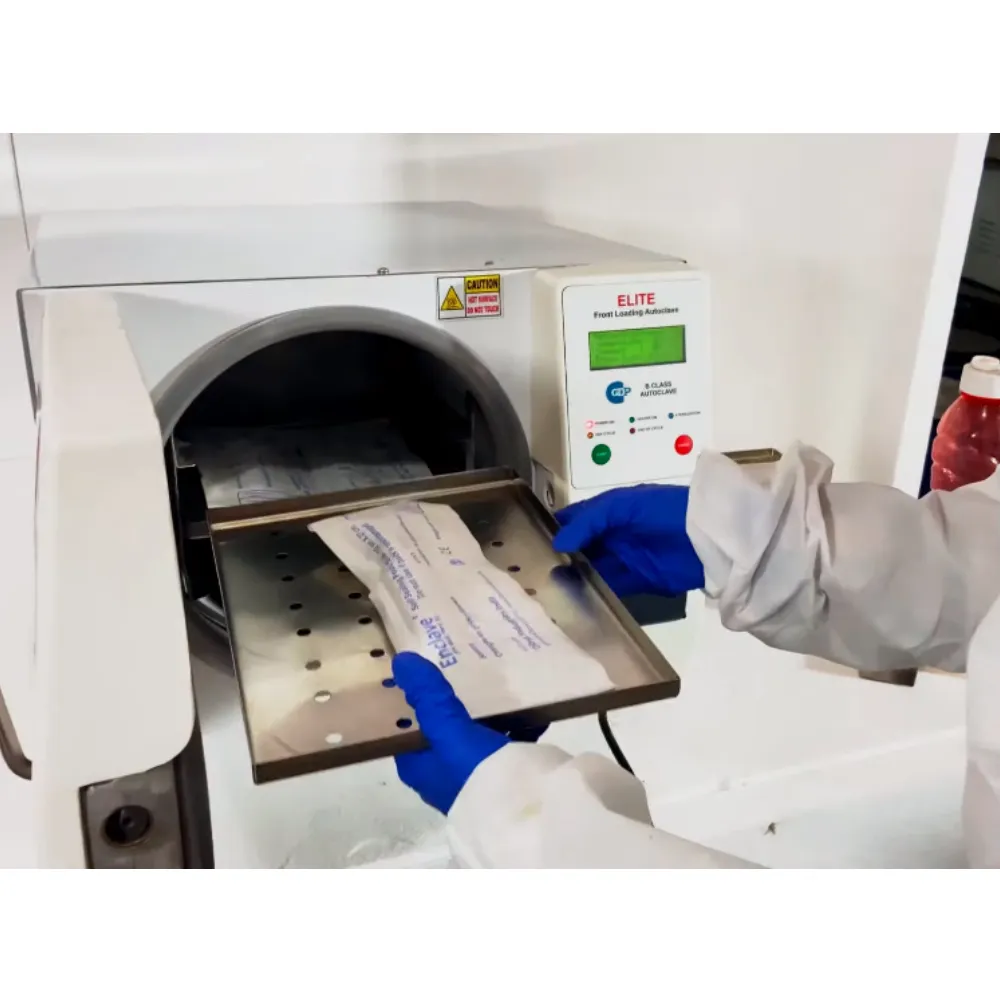

• Load the Autoclave: Open the front door of the autoclave.Place the sterilization items on the trays inside, ensuring they are not overcrowded.
• Close the Door: Securely close the front door to ensure a tight seal.
• Select Sterilization Cycle: Choose the single universal sterilization cycle at 121°C / 18 PSI on the digital display.
• Initiate Sterilization: Start the cycle by pressing the appropriate buttons or using the single-touch operation feature.
• Monitor Operation: Observe the digital display for information on timer, temperature, and sequence of operations.
• Completion and Printing: After completion, the inbuilt printer will automatically print a receipt with cycle details. Retrieve and store this receipt for record-keeping and publicizing sterilization practices.
• Post-Sterilization: Allow any post-sterilization vacuum cycles to complete before opening the autoclave.Ensure all safety protocols are followed during and after sterilization processes.
• Wipe Spills: Immediately wipe up any spills inside the autoclave chamber after every cycle.

Packaging:

• 1 x Autoclave
• 1 x Tray Holder
• 1 x Drain Pipe
• 1 x Measuring Flask
• 3 x Stainless Steel Tray
