Light Cure Unit – Coolight

 Light Cure Unit delivers maximum light intensity safely and consistently.

This light cure unit is light in weight with 3 Program Modes and easy to handle that makes working with it easy and more efficient.

Program: P1

• Curing time – 5s,10s,15s,20s
• Intensity (mw/cm3) – 800-1000
• Mode – Standard Mode

Program: P2

• Curing time – 5s,10s,15s,20s
• Intensity (mw/cm3) – 800-1000
• Mode – Pulse Mode

Program: P3

• Curing time – 1s, 3s
• Intensity (mw/cm3) – 1000-1200
• Mode – Progressive Mode

Indications:

• Curing of Light cure Composites, Glass Ionomers & Liners
• For bleaching procedure
• Other dental materials that are curable by light.

Features:

• 1 sec. fast curing.
• 3 Distinct Modes: Standard mode, pulse mode and progressive mode
• Stable output power guarantees constant light so that the solidification effect is not affected by the consumption of remaining power
• Parallel light ensures more focused output energy and better solidification effect.
• Ergonomic design, excellent and comfortable handle feel during the treatment
• Light source featuring 360-degree rotation to realize curing from all directions
• Replaceable large capacity Lithium battery
• Auto power-off.

Key Specification:

• Dimension : 25 mm x 240 mm
• Weight : 278g
• Battery Voltage : 3.7 V
• Capacity : 2200 mAh
• Power Input AC : 100V – 240V, 50 Hz – 60 Hz
• Wave Length : 450nm – 455 nm
• Light Intensity : 800 mW/cm² – 1400 mW/cm².

Direction to Use:

• Activate the curing light by pressing the ON switch.
• The curing light is preset in the factory to the “Standad” mode for 10 seconds.
• Press and hold the TIME/MODE switch for 2 seconds to change the mode. Press the TIME/MODE switch repeatedly to locate the desired time for the “Standard” “Pulse”or “Progressive” mode.
• Every start and end of a programme or every change of time or mode,will be signaled with a “beep”.
• Put on the disposable curing light sleeve to cover the entire curing light for cross infection control.
• Put the protective light shield onto the light guide tip until it is firmly held on the curing light. The curing light is now ready for use.

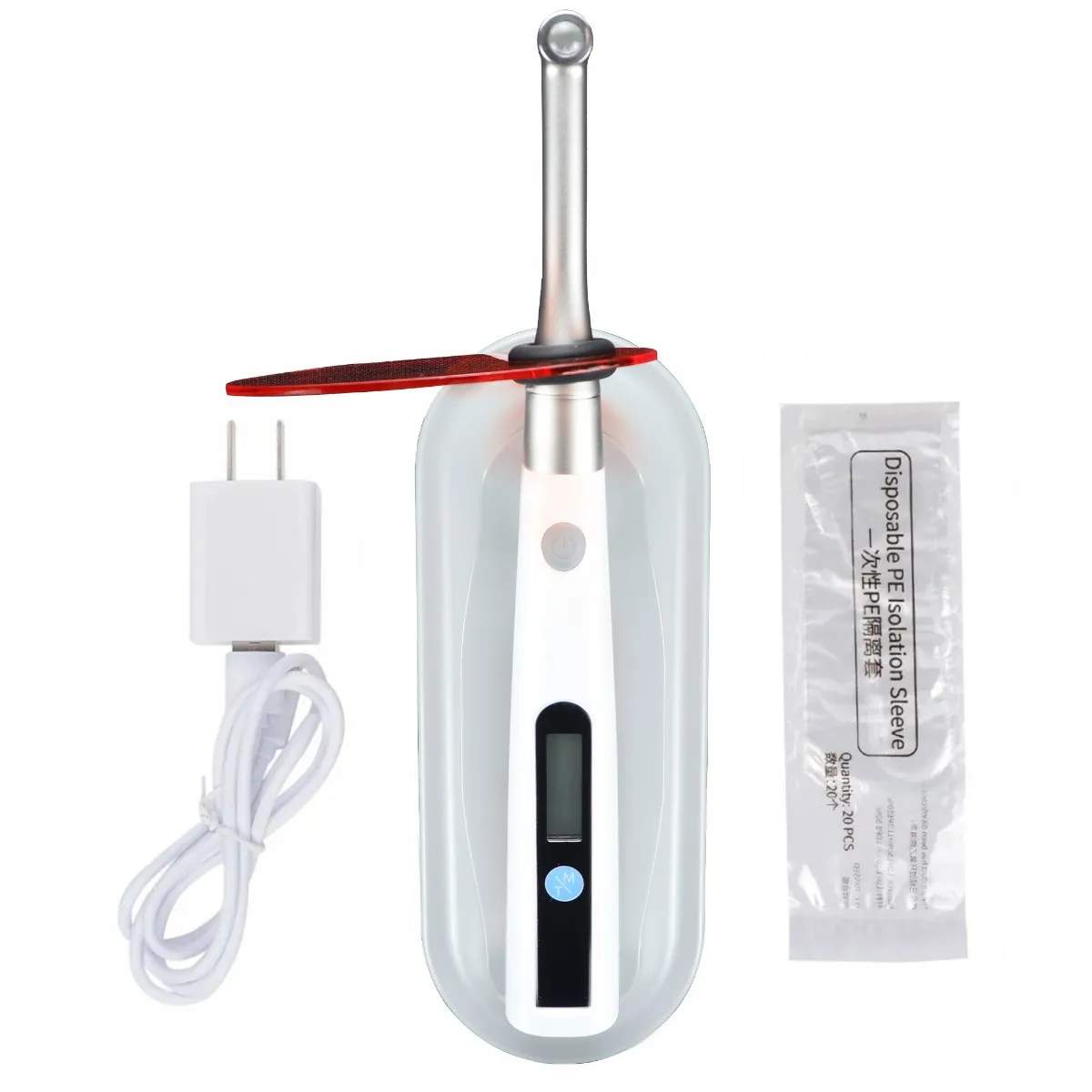

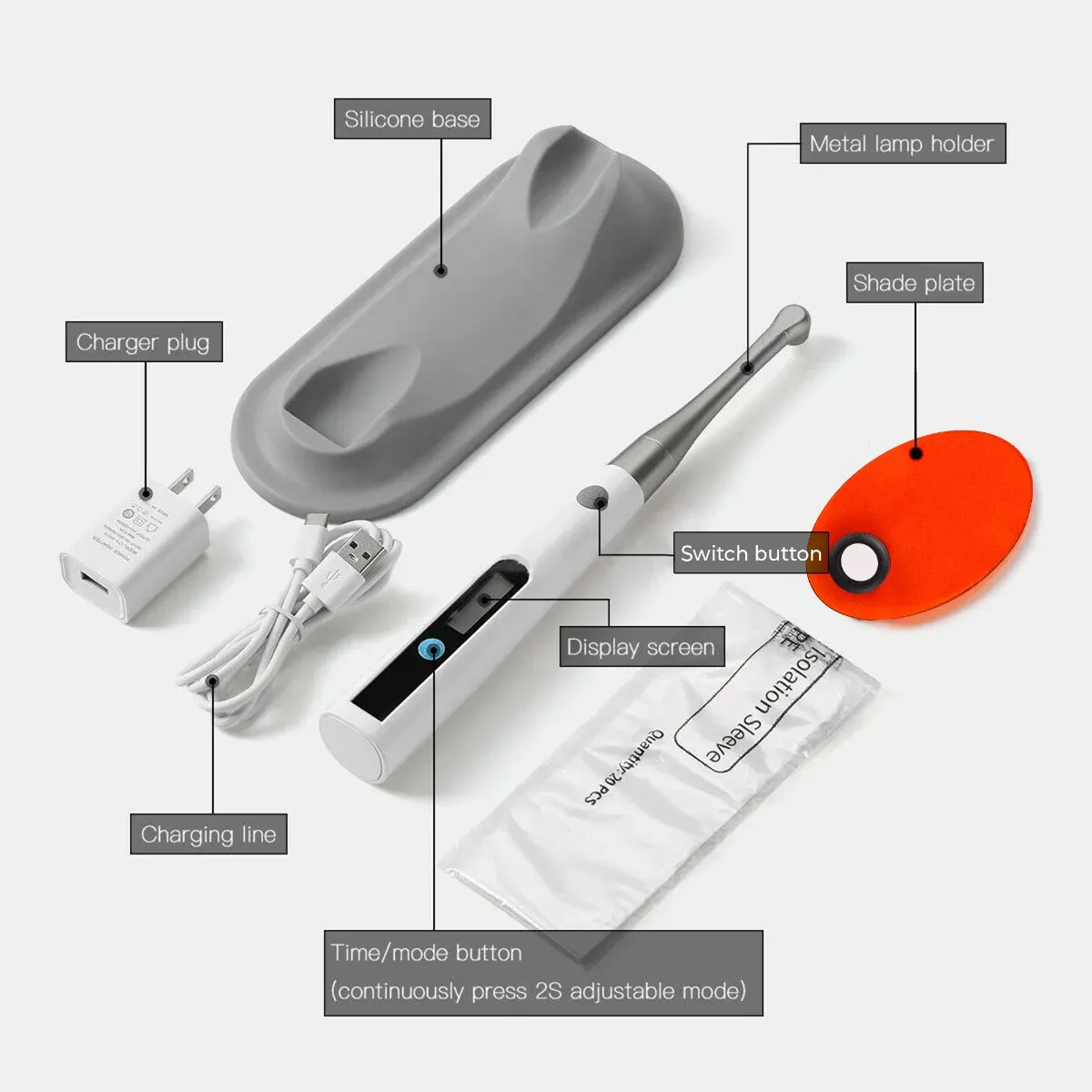

Packaging:

• 1 x Light Cure Unit
• 1 x Silicon Base
• 1 x Charger Plug
• 1 x Charging Wire
• 1 x Shade Plate
• 20 x Isolation Sleeves
