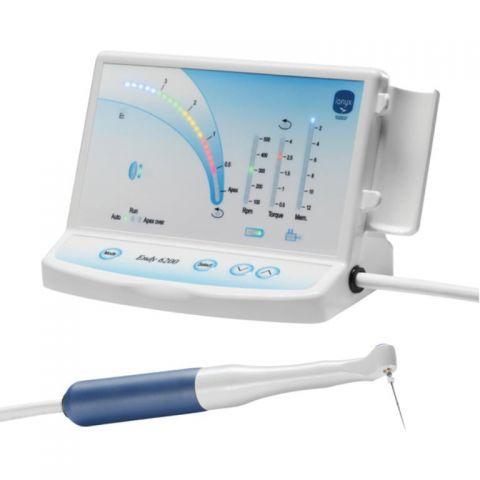

IONYX Endy 6200 (Endomotor with Apex Locator)

IONYX Endy 6200 (Endomotor with Apex Locator) - Image 2

IONYX Endy 6200 (Endomotor with Apex Locator)

Over weight charges

Endomotor Integrated with Latest generation Apex Locator.

Endomotor & Apex Locator can work independently.

Description

Endy 6200 is a new micromotor with a built-in apex locator intended for the root canal preparation with nickel titanium files.

The contra angle support is located on the unit itself.

The ENDY 6200 has:12 memories. Each memory corresponds to a predefined torque and speed. The apical stop buffer default setting is 0.5. The « V or Λ » keys are used to change the memory. You can change the torque, the speed and the apical stop buffer of each memory. The speed and torque values may be changed.

Key Specification:

Endomotor Integrated with Latest generation Apex Locator
Endomotor & Apex Locator can work independently
Constant speed and torque
A fully digital measurement

Features:

1:1 Contra angle
World’s lightest handpiece, which is also autoclavable
A fully digital measurement
An isolated internal sensor in the contra-angle handpiece
Constant speed and torque.

Benefits:

Instantaneous measurements enable you to obtain information about the position of your file upon it coming into contact with the root canal.
The 1-second return to slow speed technology used by IONYX since 1996 enables you to disengage the instrument without pushing dentine debris back towards the apex.
The Endy 6200 has 12 onboard memory settings, enabling you to programme that number of speeds and torques adapted to each file used. Programming it is easy and intuitive.
As soon as the programmed torque is achieved, the motor shuts down quickly thanks to an electronic locking mechanism that enables the risk of breaking the instrument to be limited.
The Endy 6200 enables you to adjust the speed for your file from 100 to 500 rpm.
Its fast charger enables your battery to be fully recharged in 2 hours. In order to preserve it, charging it shuts off automatically once it is fully charged.
The Endy 6200 enables you to work autonomously for 1 hour with an average torque of 1.5 N.cm (40 root canal treatments noted on average.

Direction to Use:

Auto Mode

Automatic rotation; Apex auto-reverse (buffer); Torque auto-reverse
On entering the pulp cavity, the endomotor starts automatically
On reaching the set torque limit, the file slowly starts to rotate in reverse direction

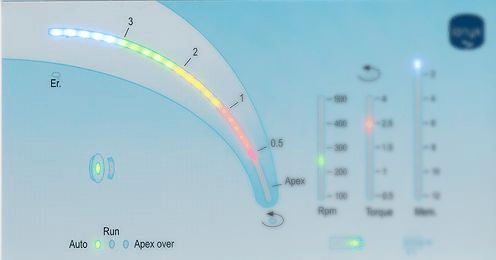

Progression of your file towards the apex is shown by the luminous bar representing a canal
On reaching the set apex buffer, file stops automatically
If the end of the file is at the buffer or beyond for one and a half seconds, the rotation switches to slow reverse.

Run Mode

Forced rotation | Apex auto-reverse (buffer) | Torque auto-reverse
File rotation start/stop is controlled by buttons on device
File will not automatically start on entering the canal
All other features similar to “auto” mode.

Apex-over Mode

Automatic rotation | No stopping at the apex (buffer) | Torque auto-reverse
On entering the pulp cavity, the endomotor starts automatically
On reaching the set torque limit, the file slowly starts to rotate in reverse direction
Progression of your file towards the apex is shown by the luminous bar representing a canal
This mode does not stop the rotation at the apex (the buffer light is off)
This mode should be used with caution and in cases where the measurement is upset by a damaged tooth, amalgam.

Tech Information:

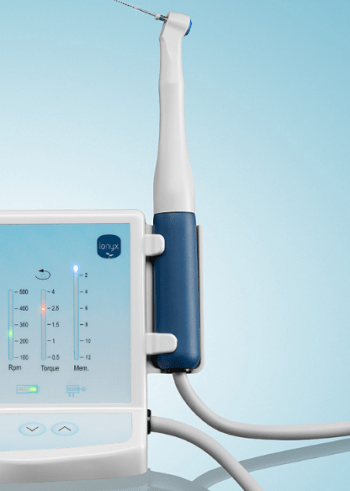

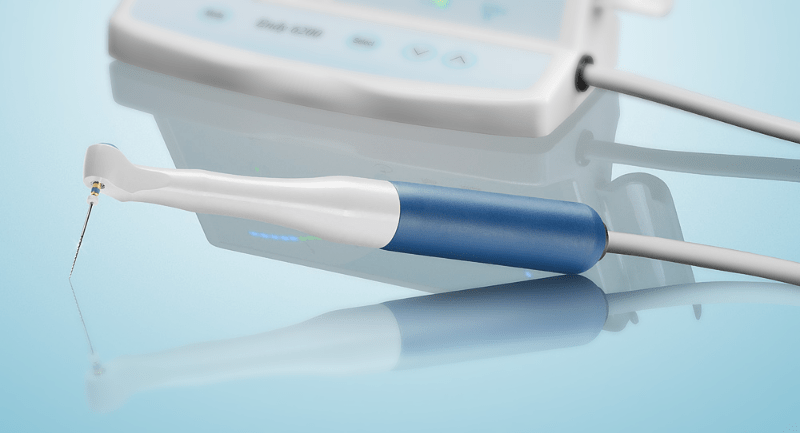

Handpiece

Ultra light weight – only 25 gms
Push button microhead
Autoclavable at 135 degree celcius
Plastic body ensures perfect insulation for Apex Locator

Apex Locator

Zero Calibration device – no need to zero calibrate
Works on Triple Frequency(100 Hz; 333 Hz and 10 kHz).
Works in all conditions including <2.5% hypoclorite, sodium chloride, blood, saliva etc.
Precise readings starting from 3mm
The LED “Er” lights up, if the measurement is incorrect (amalgam cracked tooth, infinity irrigant)
Audible signal which increases in speed as apical region is reached.

Technical Specs

Speed control : 100 – 500 RPM
Torque control : 0.50 – 4.00 Ncm
Apical distance control : 0-3 mm
12 memories for predefined torque, speed & apical stop.

Battery Management

In-built 3.7v Li-ion battery gives a backup of more than 30 Root Canal Treatments
Quick charge in 2 hours
Device standby after 3 minutes of no usage – conserves battery
No dependence on always-on external power source.
