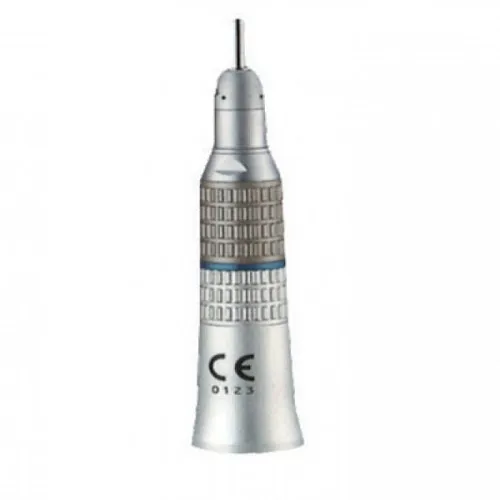

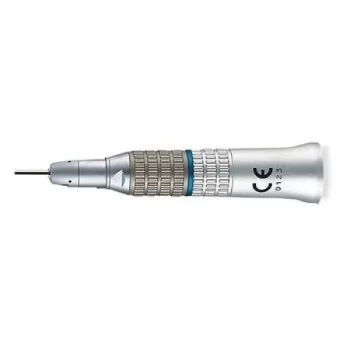

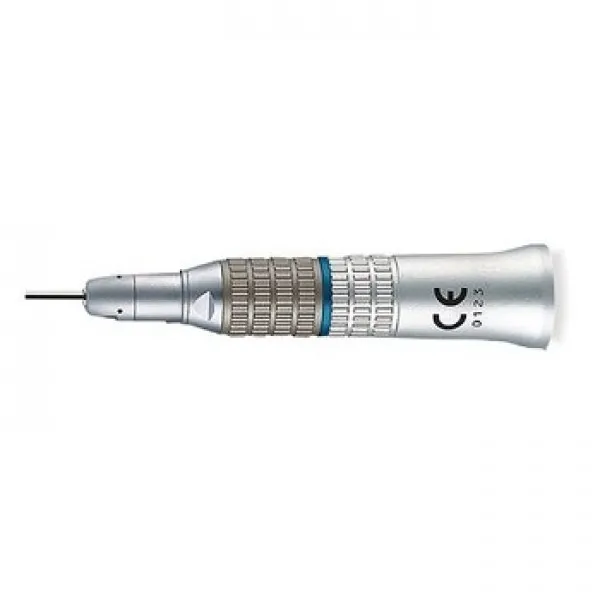

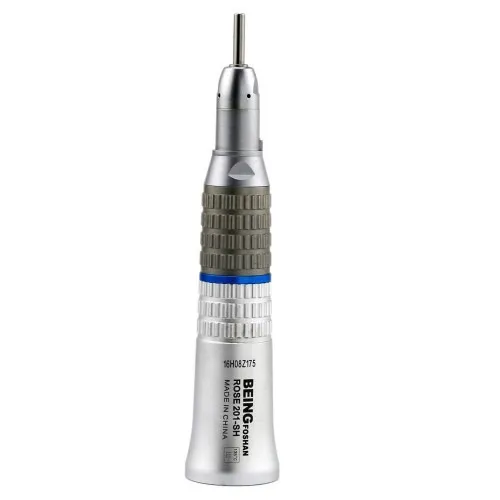

Being Foshan Straight Handpiece H/P (201SH)

Being Foshan Straight Handpiece is an E-type low-speed dental handpiece specifically designed for dental procedures. Operating at slow speeds with a range of 22,000 to 27,000 rpm, this handpiece ensures precise and controlled performance. Notably, it boasts a low noise level, emitting less than 70dB during operation, creating a quieter and more comfortable environment for both dental practitioners and patients. Its E-type configuration indicates compatibility with a variety of dental attachments. This handpiece is suitable for tasks such as trimming dentures in prosthodontics dental clinics and minor oral surgeries involving tooth and bone cutting. With its reliable and efficient design, the Being Foshan Straight Handpiece stands out as a valuable tool for dental professionals seeking a low-speed instrument for diverse dental applications.

Indication:

• Denture Trimming: Precise shaping in prosthodontics.
• Oral Surgeries:  Effective for tooth and bone cutting.
• Private Hospitals:  Versatile tool for diverse procedures.
• Clear Guidance:  Indications ensure appropriate usage.
• Safety Focus:  Minimizes risks, ensuring patient safety.

Features:

• External cooling system
• Compact design
• Reliable
• Easy to use
• Light weight.

Key Specification:

Technical Features:-

• Description:- E type low-speed handpiece，1:1 Ratio, with external cooling system
• Air pressure:– 245~392Kpa (2.5~4.0 kgf/cm2)
• Water Pressure:– 198Kpa (2 kg)
• Rotation Speed:- 22,000~27,000 rpm
• Bur Applicable:- Φ2.334~2.355 mm
• Noise:- ≤70dB.

Direction to Use:

Preparation:

• Ensure that the handpiece is properly sterilized.
• Confirm that the bur (dental drill) is securely attached to the handpiece.

Connect to Dental Unit:

• Connect the handpiece to the dental unit’s air and water supply as per the unit’s specifications.

Adjust Air and Water Pressure:

• Set the air and water pressure to the recommended levels specified in the handpiece’s technical features (typically 245-392 Kpa for air and 198 Kpa for water).

Bur Inspection:

• Before each use, inspect the bur for any damage or wear. Replace if necessary.

Patient Preparation:

• Prepare the patient for the specific dental procedure, ensuring their comfort and safety.

Handpiece Operation:

• Hold the handpiece in a comfortable and ergonomic grip.
• Activate the handpiece according to the dental unit controls.
• Adjust the rotation speed based on the procedure requirements (22,000-27,000 rpm for this handpiece).

Procedure Execution:

• Perform the dental procedure with precision, using the handpiece for tasks such as trimming dentures or tooth/bone cutting.

Cooling System:

• Monitor the external cooling system to ensure effective heat dissipation during prolonged use.

Post-Procedure:

• After the procedure, detach the handpiece from the dental unit.
• Clean and sterilize the handpiece.
• Dispose of or sterilize the bur appropriately.

Packaging:

• 1 x Straight Handpiece
